Transparent PMMA Resin HD01 | Weather-Resistant PMMA Pellets
PMMA HD01 is a transparent, weather-resistant and abrasion-resistant PMMA resin for extrusion and injection molding, with 92% light transmission at 3 mm.
Transparent PMMA Resin HD01

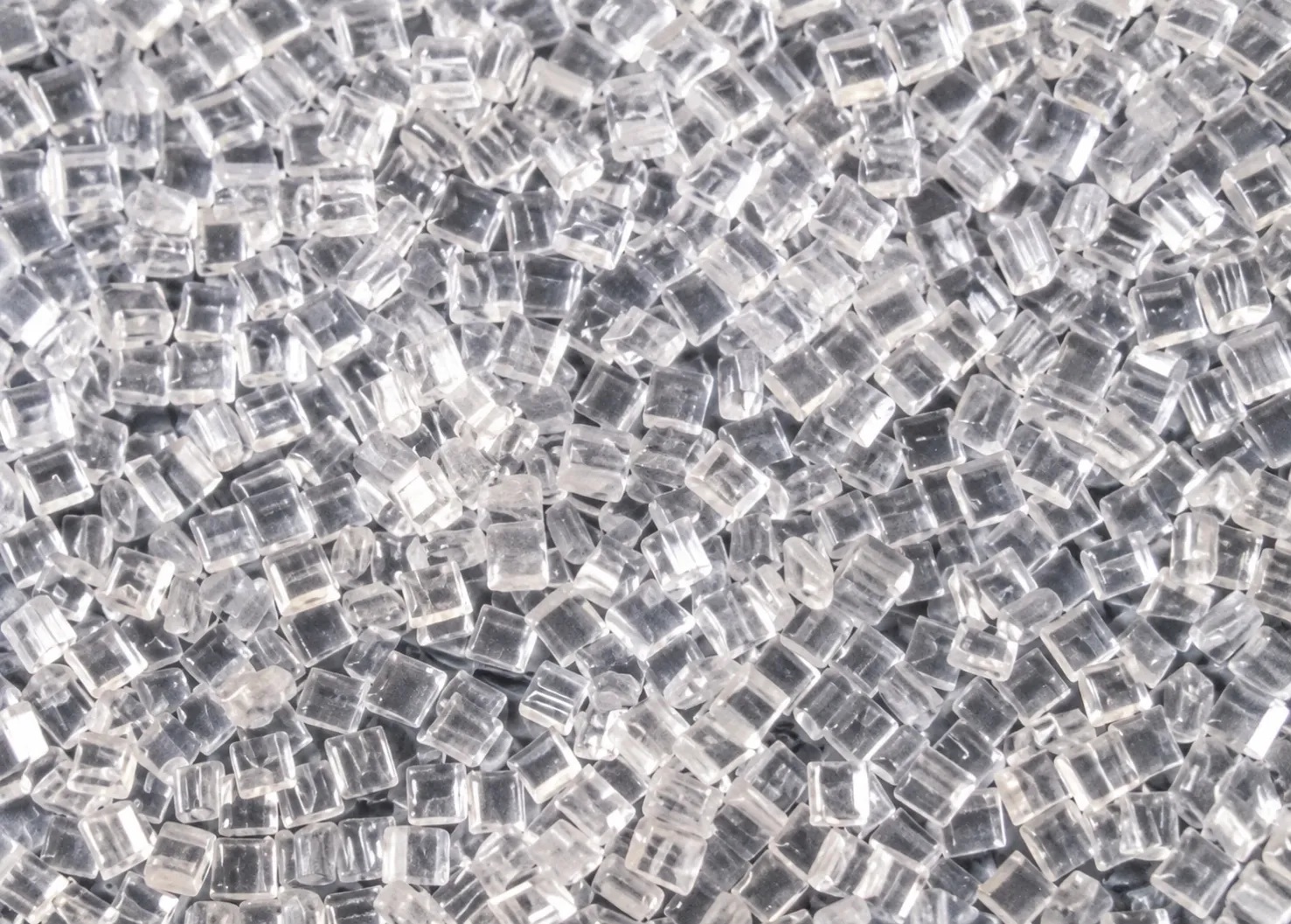

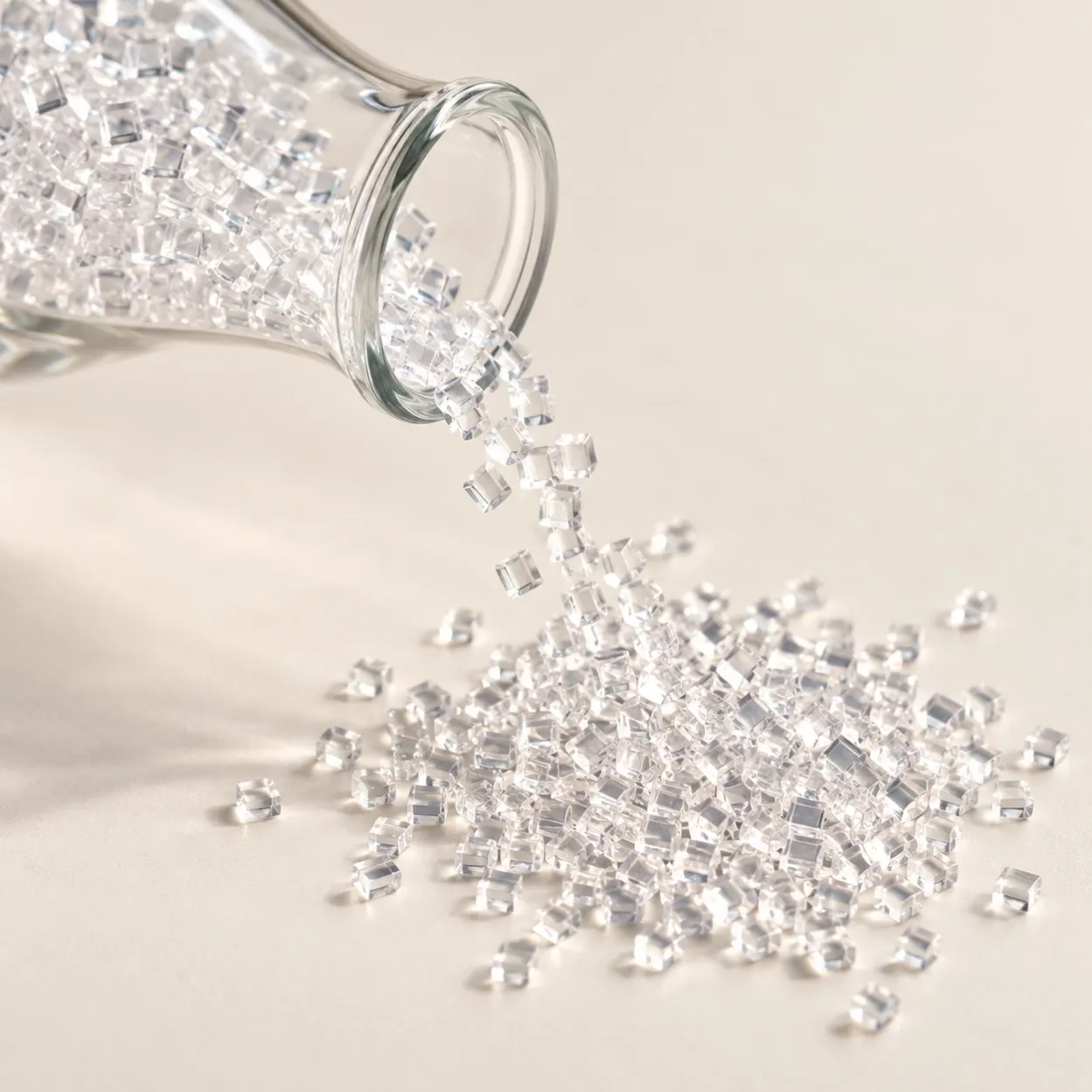

PMMA Resin HD01 is a transparent PMMA material supplied in pellet form for extrusion and injection molding. The grade is listed with weather resistance and abrasion resistance, making it suitable for processors evaluating clear PMMA resin for appearance-sensitive molded or extruded parts.
At a 3 mm thickness, the supplied data shows 92% light transmission and haze below 0.5%, supported by a refractive index of 1.49.
Product Highlights
- Transparent PMMA resin pellets
- Weather-resistant and abrasion-resistant characteristics
- Suitable for extrusion and injection molding
- Light transmission: 92% at 3 mm
- Haze: <0.5% at 3 mm
- Tensile strength: 77 MPa
- Heat deflection temperature: 102°C at 1.8 MPa
Technical Data
Property | Test Condition | Value | Test Method |
|---|---|---|---|
Water Absorption | 24 hr | 0.3% | ISO 62 |
Melt Flow Rate | 230°C / 3.8 kg | 2 g/10 min | ISO 1133 |
Density | — | 1.19 g/cm³ | ISO 1183 |
Molding Shrinkage | — | 0.2–0.6% | ISO 294 |
Tensile Modulus | 1 mm/min | 3300 MPa | ISO 527 |
Tensile Strength | 5 mm/min | 77 MPa | ISO 527 |
Elongation at Break | 5 mm/min | 6% | ISO 527 |
Flexural Modulus | 2 mm/min | 3300 MPa | ISO 178 |
Flexural Strength | 2 mm/min | 135 MPa | ISO 178 |
Charpy Impact Strength, Unnotched | — | 20 kJ/m² | ISO 179 |
Charpy Impact Strength, Notched | — | 1.4 kJ/m² | ISO 179 |
Heat Deflection Temperature | 1.8 MPa | 102°C | ISO 75 |
Vicat Softening Temperature | B50 | 107°C | ISO 306 |
Dielectric Strength | 4 kV/sec | 20 kV/mm | ASTM D149 |
Surface Resistivity | — | >10¹⁶ ohms | ASTM D257 |
Volume Resistivity | — | >10¹³ ohm·m | ASTM D257 |
Dielectric Constant | 60 Hz | 3.7 | ASTM D150 |
Flammability Rating | 1.5 mm / 3.0 mm | HB | UL 94 |
Refractive Index | nd | 1.49 | ISO 489 |
Light Transmission | 3 mm | 92% | ISO 13468 |
Haze | 3 mm | <0.5% | ISO 14782 |
Processing Methods
PMMA HD01 is listed for:
- Extrusion
- Injection molding
Processing conditions, mold design, part thickness, colour requirements, and final-use conditions should be confirmed through production trials.
Request PMMA HD01 Documentation
Contact Lema Plastic to request the latest TDS, COA, SDS, packaging options, availability, and a suitability review for PMMA HD01. Please provide your process, part design, colour or transparency requirement, destination market, and expected order volume.
