ABS Resin
Transparent MABS Resin PA-758 | Injection Molding Pellets
Transparent MABS resin PA-758 pellets for injection molding. Typical MFR 3 g/10 min, density 1.08 g/cm³ and balanced impact performance. Request current TDS.
Transparent MABS Resin PA-758 for Injection Molding

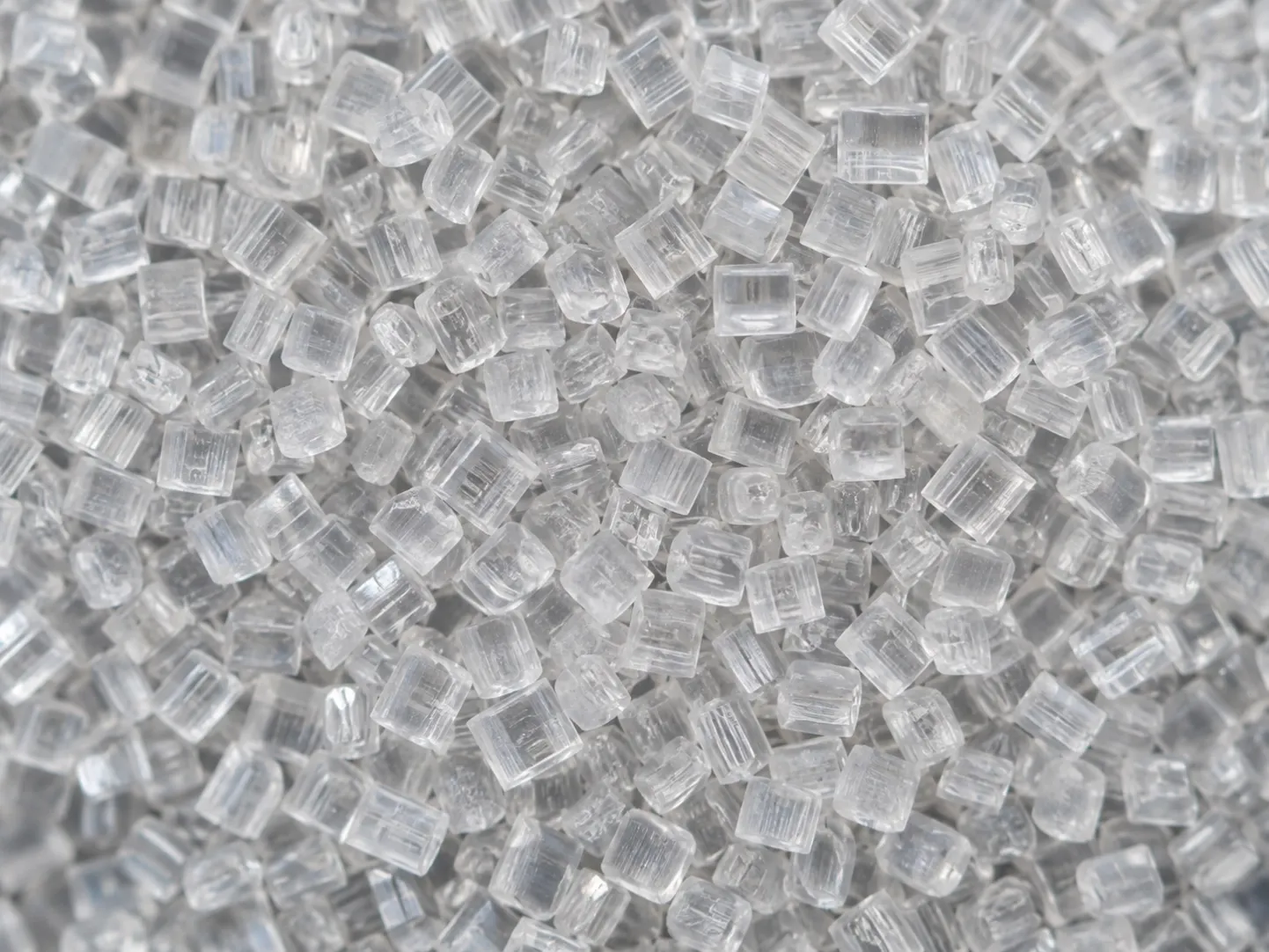

MABS PA-758 is a transparent MABS resin grade supplied in pellet form for injection molding. It combines transparent or white appearance options with toughness, chemical resistance and balanced flow properties for appearance-sensitive molded parts.
Key Benefits
- Transparent and white appearance options
- High toughness and impact performance
- Chemical-resistant MABS resin
- Pellet material for injection molding
- Suitable for household-appliance and stationery components
Typical Technical Data
Property | Typical Value | Test Condition / Method |
|---|---|---|
Melt flow rate | 3 g/10 min | 200°C, 5 kg, ISO 1133 |
Density | 1.08 g/cm³ | 23°C, ISO 1183 |
Mold shrinkage | 0.3–0.7% | ISO 294-4 |
Tensile yield strength | 42 MPa | 50 mm/min, ISO 527 |
Tensile break strength | 33 MPa | 50 mm/min, ISO 527 |
Elongation at break | 35% | 50 mm/min, ISO 527 |
Flexural strength | 57 MPa | 2 mm/min, ISO 178 |
Flexural modulus | 1.9 GPa | 2 mm/min, ISO 178 |
Notched impact strength | 14 kJ/m² | 23°C |
Notched impact strength | 7 kJ/m² | -30°C |
Heat deflection temperature | 77°C | 1.8 MPa, unannealed, ISO 75/A |
Heat deflection temperature | 97°C | 1.8 MPa, annealed, ISO 75/A |
Vicat softening temperature | 104°C | 50°C/h, 1 kg, ISO 306 |
Vicat softening temperature | 96°C | 50°C/h, 5 kg, ISO 306 |
Flammability rating | HB | 1.5 mm, UL 94 |
Typical Applications
PA-758 transparent MABS resin may be evaluated for:
- Washing-machine covers and appliance panels
- Air-conditioner panels
- Vacuum-cleaner housings
- Stationery and general consumer-product components
- Transparent or appearance-sensitive injection-molded parts
Processing and Documentation
MABS PA-758 is supplied as pellets for injection molding. Confirm drying conditions, melt temperature, mold temperature and the current lot technical data sheet before production.
Request Current Product Data
Send your target application, color requirement, processing conditions and destination market to request current product data, availability and quotation support.
